Single (1) RS232 Serial + 1 EPP/ECP Parallel Port I/O Card for PCI Express (PCIe) (Model #LF769KB)



Looking for a PCI Express RS232 1S1P Multiport card ?



Installs in seconds !

From THE LEADER in PCI Express I/O Card designs.



The most advanced PCI Express 1S1P (RS232 + EPP/ECP) Multiport adapter.



Click for large picture of the PCI Express (PCIe) LF769KB adapter

Single (1) 16950 UART RS232 Serial + 1 EPP/ECP Parallel Port I/O Card

for x1, x4, x8, x16 lane PCI Express expansion slots.

Suitable for Standard height mounting (Low profile is optional).

Compatible with all PCI Express (PCIe) motherboards.



Introducing the industry's most featured and most advanced add-on 1 serial (16950) + 1 parallel (EPP/ECP compatible) adapter for PCI Express. This cutting edge design permits a quick installation of 1 of RS232 serial + 1 of parallel port to any brand of computer system with a PCI Express expansion slot. Support is provided for Microsoft Windows 9x, ME, 2000, XP (32/64), NT4, 2003-32 bit, 2003-64 bit, QNX, OS/2 Warp 4.0, Vista 32/64, Windows 7 (32/64 bit), SCO 5.07, SCO 6.0 and Linux (32/64 bit). Furthermore, Linux users will welcome the ease of installation of this advanced card by not having to recompile kernels, without embedding add-on device drivers or patches and without inserting add-on modules. The Axxon LF769KB card is Plug & Play supported by all current Linux kernels. Count on Axxon to provide unrivalled no-charge toll-free (US/Canada) technical support by Design Engineers. Find out today why we are the #1 choice of international OEMs for PCI Express designs. We welcome requests from volume integrators world-wide.



Order Part #LF769KB

Part # LF769KB is RoHS & Pb-free compliant



  Compatible with all brands / models of computer systems with PCI Express (PCIe) expansion slots
  Use in x1, x4, x8, x16 lane bus slots
  Standard Height Mounting bracket is included (Low profile bracket set is optional)
  Confirmed operation with printers, external parallel port devices and security dongles.
  30kv ESD Static Parallel Port Protection - Highest level of ESD Protection
  5 Year product replacement warranty. Technical support from Design Engineers.
  Parallel Port Compatible with Rainbow Sentinel (Super Pro, Pro, C+, Scribe), Aladdin HASP/Hardlock, DESKey, Dallas iButton, Wibu, Eutron, Globe dongles. Additional dongle support is under development.
Single (1) High Speed 16C950 Serial + Single (1) EPP/ECP Parallel Port for PCIe / PCI Express expansion slots
Bus design compatible with x1, x4, x8, x16 lane expansion slots
Standard Height mounting (Low height mounting bracket kit is optional)
Standard size mounting brackets included
IDC cable to DB9M included
16C950 UART ( 8x buffer than 16550)
128 Byte Transmit / Receive Buffers
Hardware Auto-Flow Control

TRUE 1 Megabaud RS232 Transceivers

DMA, MSI and MSI-X support (Vista)

Software Selectable PLL for non-standard baud rates

RS232F Electrical Interface
15 kv ESD Surge Serial Port Protection
30 kv ESD Parallel Port Protection
Short-Circuit / Thermal and current protected RS232 transceivers
Power Management Compliant

Device Driver support for:

Dos & Novell (Parallel Port only)

Win 95 / 98

Win ME

Win XP / XP Pro

Win NT / NT Server

Win 2000 / 2000 & 2003 Server

Embedded XP / XP Pro / WinXP64

Vista 32 & 64 Bit (Signed WHQL)

Windows 7 32 & 64 Bit (DTM Signed)

Plug & Play in Linux (32/64 Bit)

* No drivers, No add-on modules or patches and No kernel rebuilds required

QNX, OS/2 (Warp 4.0)

Vmware (Not ESXi)

Designed and Assembled in Canada

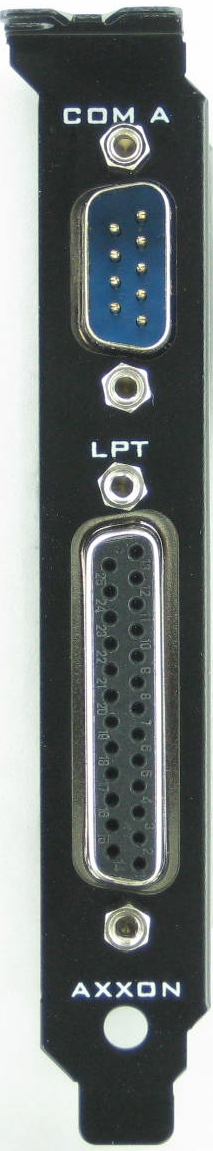

Click for higher resolution picture of full height bracket
