Universal PCI, PCI Express (PCIe) Serial & Parallel Port I/O Adapters

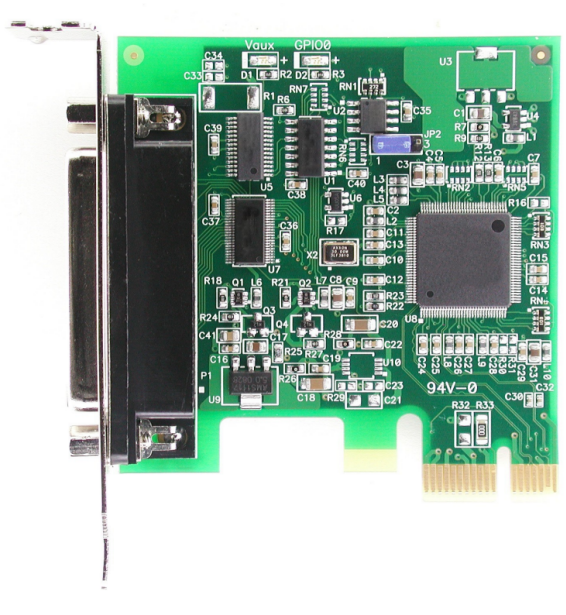

Click for large picture of the PCI Express (PCIe) LF9189KB EPP/ECP Parallel Port Host Adapter

PCI Express (PCIe) EPP1.9/ECP Parallel Port Host Adapter

EPP 1.9 / ECP compliant parallel port

5 volt IEEE1284 compliant level shifting for longer cable drive

Compatible with any free PCI Express slot (x1, x4, x8, x16)

30kv ESD protection (highest in the industry)

Certified and recommended by Plasmacam and Teknic

Low / Standard height mounting

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)

Designed & Assembled in Canada

Model # LF918KB

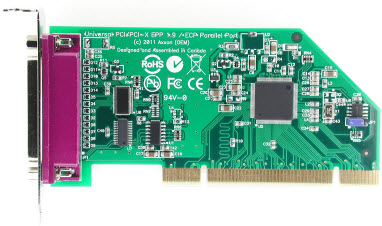

Click for large picture of the Universal PCI (uPCI) LF918KB EPP/ECP Parallel Port Host Adapter

Universal PCI (uPCI) EPP1.9/ECP Parallel Port Host Adapter

EPP 1.9 / ECP compliant parallel port

5 volt IEEE1284 compliant level shifting for longer cable drive

Compatible with any free 32 or 64 bit PCI bus expansion slot (3.3 or 5 volt)

30kv ESD protection (highest in the industry)

Certified and recommended by Plasmacam and Teknic

Low / Standard height mounting

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)

Designed & Assembled in Canada

Model # LF919KB

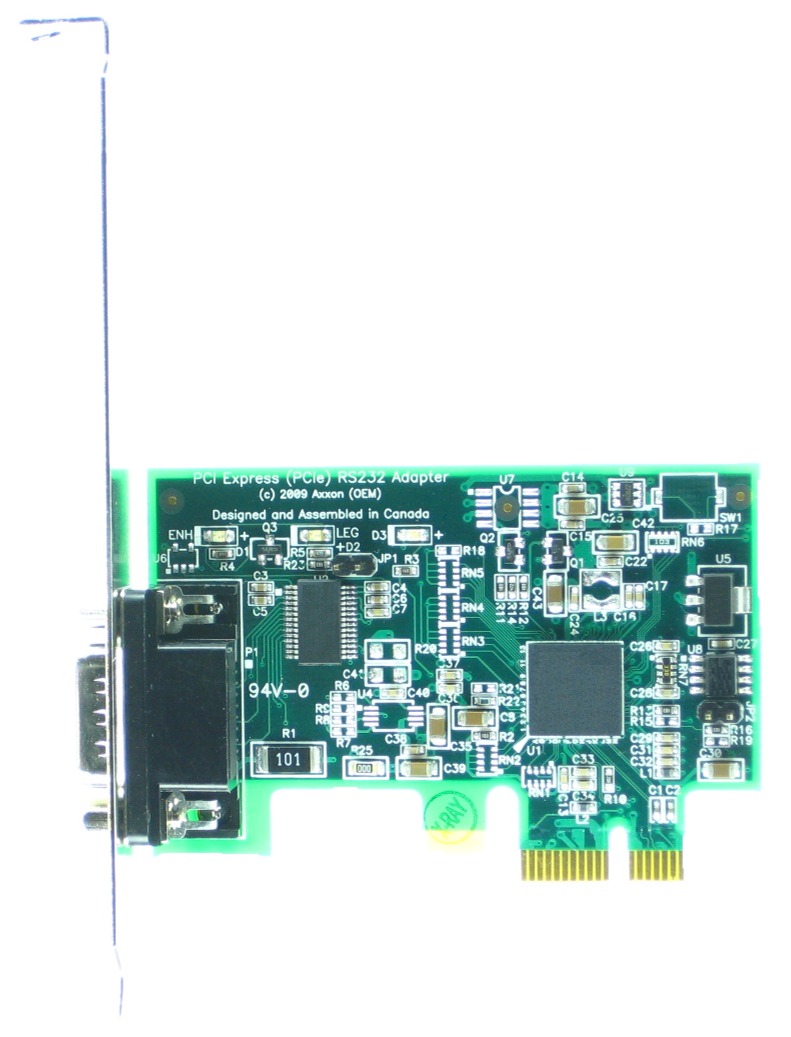

Click for large picture of the PCI Express (PCIe) LF659KB RS232 Host Adapter

PCI Express (PCIe) Single (1) RS232 Serial Host Adapter

Single (1) 16C950 UART

RS232 Interface (Full 9 wire)

DB9M connector with DTE pinout

15kv ESD protected 1 Mbaud Transceivers

128 byte TX & RX FIFOs

Low / Standard height mounting

15kv ESD Protection

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)



Designed & Assembled in Canada



Model # LF659KB



Click for large picture of the PCI Express (PCIe) LF774KB SMPTE RS422 adapter

PCI Express (PCIe) Single (1) RS422 SMPTE Serial Host Adapter

Single (1) 16C950 UART

RS422 Interface (TX+, TX-, RX+, RX-)

DB9F connector with SMPTE pinout

Software selectable DTE / DCE Modes

128 byte TX & RX FIFOs

Low / Standard height mounting

15kv ESD Protection

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)



Designed & Assembled in Canada



Model # LF774KB

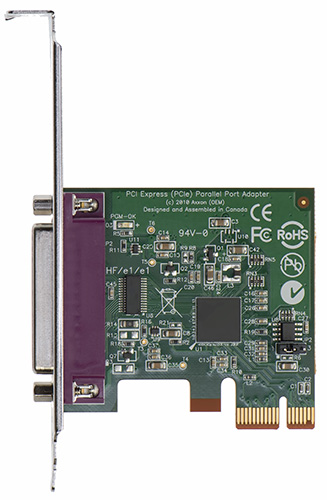

Click for large picture of the PCI Express (PCIe) LF811KB adapter

PCI Express (PCIe) Single (1) EPP/ECP IEEE1284 Parallel Port Host Adapter

Compatible with EPP 1.7 / ECP specification

Certified and recommended by Sensable / Geomagic (Rev 12 controllers)

Tested and compliant with RedHat Linux distributions (Plug and Play)

Low / Standard height mounting

30kv ESD Protection (Highest in the industry)

Supported under DOS, Windows 2000, 2003, 2008, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, Windows 10, OS/2, VMWare, SCO 5.07 / 6.0, and Linux 32 / 64 (Plug & Play)

Compatible with security dongles

Designed & Assembled in Canada



Model # LF811KB

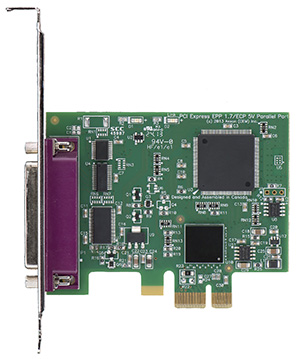

Click for large picture of the PCI Express (PCIe) LF652KB adapter

PCI Express (PCIe) Single (1) EPP/ECP IEEE1284 Parallel Port Host Adapter

Compatible with EPP 1.7 / ECP specification

5 volt IEEE1284 compliant level shifting for longer cable drive

Industry's first and most mature PCI Express Parallel port adapter

Certified and recommended by Sensable / Geomagic (Rev 11 or 12 controllers)

Tested and compliant with RedHat Linux distributions (Plug and Play)

Low / Standard height mounting

30kv ESD Protection (Highest in the industry)

Supported under DOS, Windows 2000, 2003, 2008, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, Windows 10, OS/2, VMWare, SCO 5.07 / 6.0, and Linux 32 / 64 (Plug & Play)

Compatible with security dongles

Designed & Assembled in Canada



Model # LF652KB

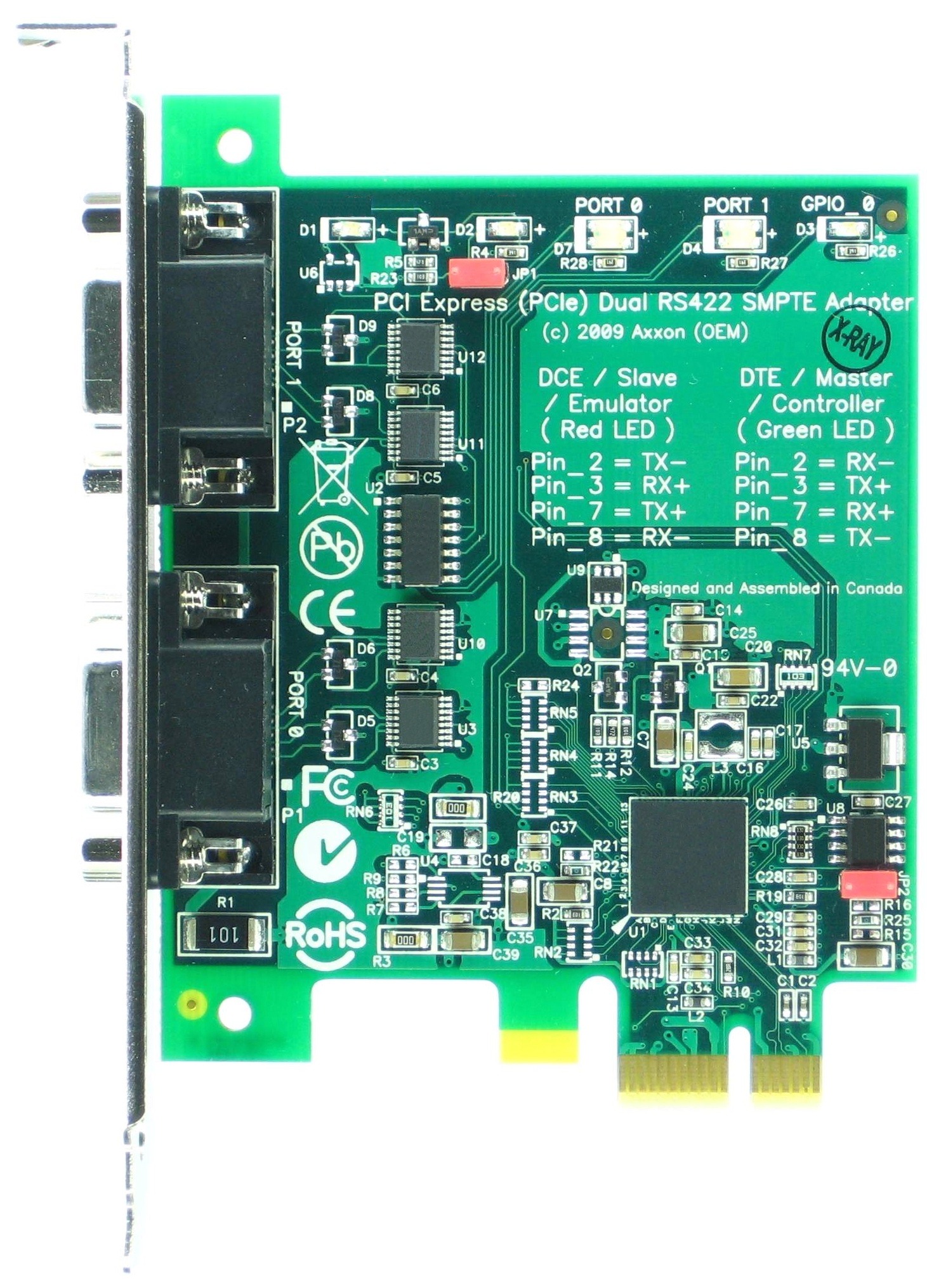

Click for large picture of the PCI Express (PCIe) LF775KB SMPTE Dual RS422 adapter

PCI Express (PCIe) Dual (2) RS422 SMPTE Serial Host Adapter

Dual (2) 16C950 UART

RS422 Interface (TX+, TX-, RX+, RX-)

2 x DB9F connector with SMPTE pinout

Software selectable DTE / DCE Modes

128 byte TX & RX FIFOs

Standard height mounting

15kv ESD Protection

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)

Designed & Assembled in Canada



Model # LF775KB

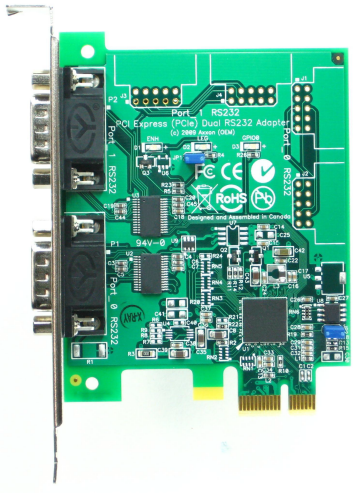

Click for large picture of the PCI Express (PCIe) LF772KB Dual RS232 adapter

PCI Express (PCIe) Dual (2) RS232 Serial Host Adapter

Dual (2) 16C950 UART

RS232 Interface (Full 9 wire)

2 x DB9M connector

Max Baud Rate 921k

128 byte TX & RX FIFOs

Standard height mounting

15kv ESD Protection

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)

Designed & Assembled in Canada



Model # LF772KB

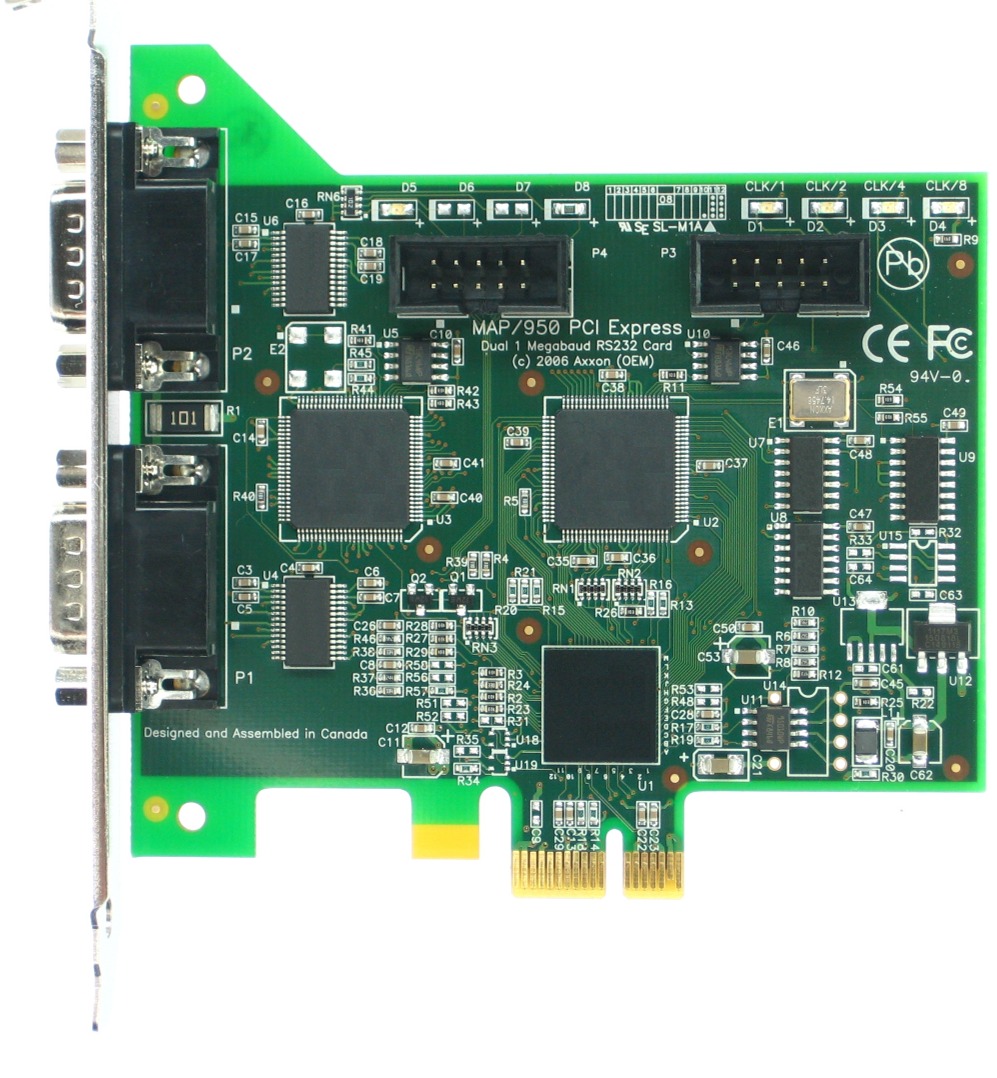

Click for large picture of the PCI Express (PCIe) LF684KB Dual RS232 adapter

PCI Express (PCIe) Dual (2) RS232 Serial Host Adapter

Dual (2) 16C950 UART

RS232 Interface (Full 9 wire)

2 x DB9M connector

Max Baud Rate 921k

128 byte TX & RX FIFOs

Standard height mounting

15kv ESD Protection

Supported under Windows 10, 2000, 2003, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)

Designed & Assembled in Canada



Model # LF684KB

Click for large picture of the PCI Express (PCIe) LF808KB adapter

PCI Express (PCIe) Dual (2) R232 Serial Host Adapter

Dual (2) 16C950 UARTs

128 byte TX & RX FIFOs

Standard height / Low height mounting

15kv ESD Protection

2 Port DB25M to 2xDB9M Cable included (12" length)

Supported under Windows 10, 2000, 2003, 2003 Server, 2008, XP 32 / 64, NT4, Vista 32 / 64, Windows 7, Windows 8.x, 2008, QNX 4 / 6 , OS/2, VMWare and Linux 32 / 64 (Plug & Play)

Designed & Assembled in Canada

Model # LF808KB

Click for large picture of the PCI Express (PCIe) LF757KB adapter

PCI Express (PCIe) Quad (4) RS232 Serial Host Adapter

Quad Channel (4) 16C750 UARTs

256 byte TX & RX FIFOs (16C550 / 16C750 compatible)

Low / Standard height mounting

15kv ESD Protection

4 port HD44M to 4xDB9M Cable included (12" / 36" length)

Supported under Windows 10, 2000, 2003, 2003 Server, 2008, XP 32 / 64, Vista 32 / 64, Windows 7, Windows 8.x, Linux 32 / 64 (2.6.28+ kernels)

Designed & Assembled in Canada

Model # LF757KB

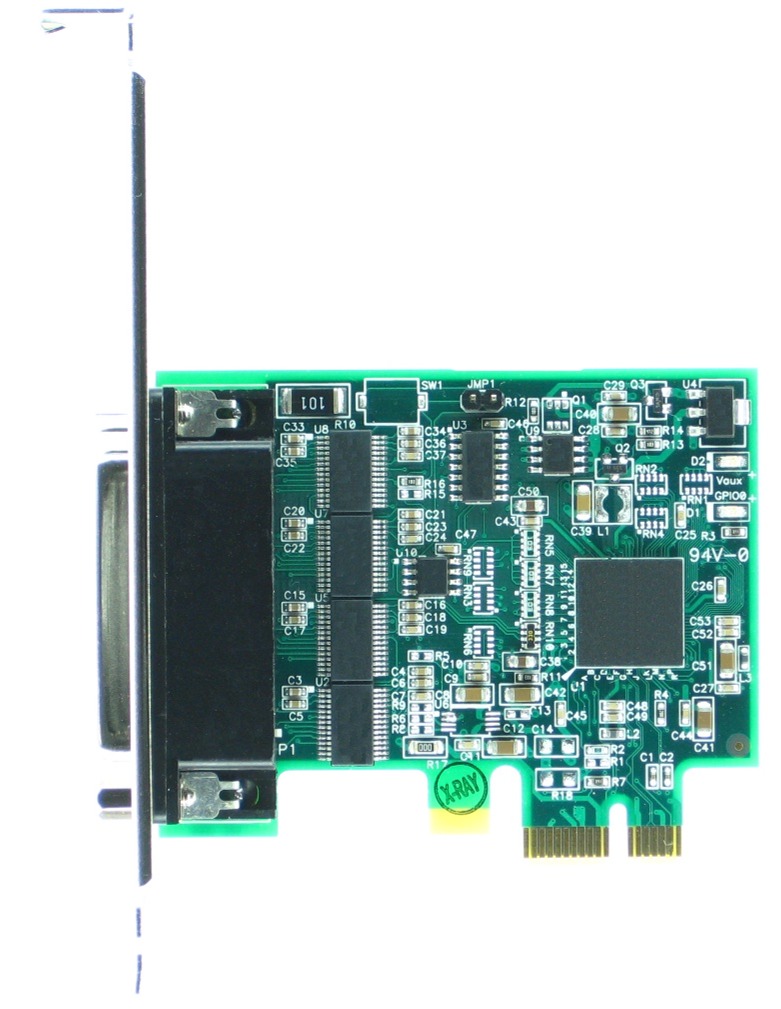

Click for large picture of the PCI Express (PCIe) LF816KB adapter

PCI Express (PCIe) Quad (4) RS232 Serial Host Adapter

Quad Channel (4) 16C950 UARTs

128 byte TX & RX FIFOs

Low / Standard height mounting

15kv ESD Protection

4 port HD44M to 4xDB9M Cable included (12" length)

Supported under Windows 10, 2000, 2003, 2003 Server, 2008, XP 32 / 64, Vista 32 / 64, Windows 7, Windows 8.x, Linux 32 / 64 (2.6.28+ kernels)

Designed & Assembled in Canada

Model # LF816KB

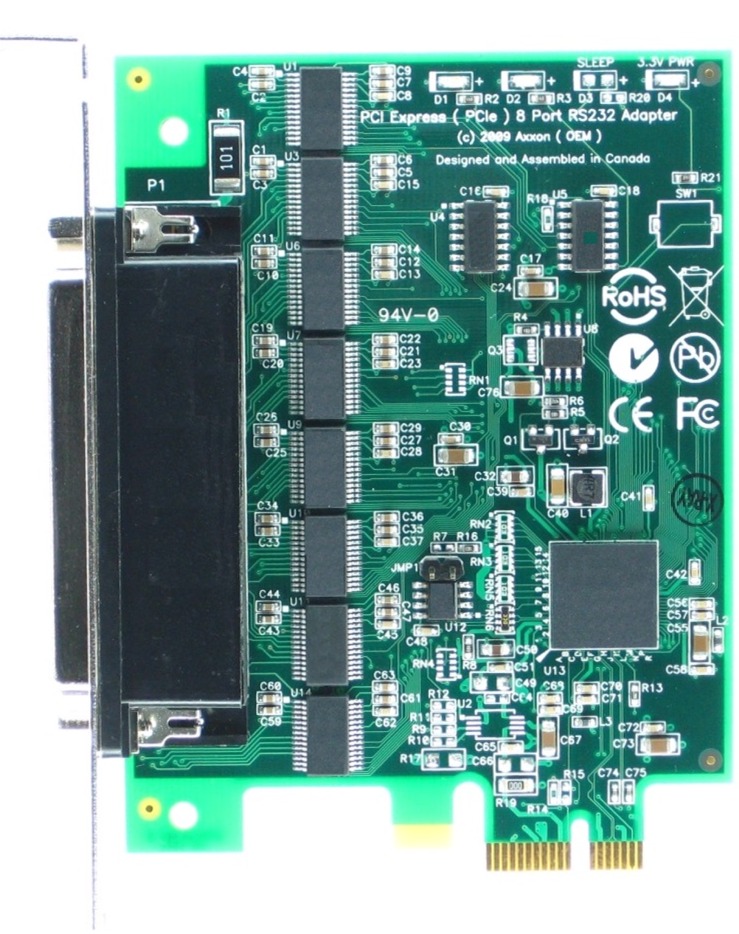

Click for large picture of the PCI Express (PCIe) LF781KB adapter
PCI Express (PCIe) 8 Port RS232 Serial Host Adapter

Eight Channel (8) 16C950 UARTs

128 byte TX & RX FIFOs

Standard height mounting

15kv ESD Protection

8 port HD78M to 8xDB9M or 8xDB25M Cable included (12" length)

Supported under Windows 10, 2000, 2003, 2003 Server, 2008, XP 32 / 64, Vista 32 / 64, Windows 7, Windows 8.x, Linux 32 / 64 (2.6.28+ kernels)

Designed & Assembled in Canada

Model # LF781KB

Click for large picture of the Universal PCI Dual Serial RS232 adapter



Universal PCI Dual (2) RS232 Serial Host Adapter

Standard (Full) height mounting

Dual 16C950 UARTs

128 byte TX & RX FIFOs

15kv ESD Protection

2 of DB9M Connectors

Compatible with 5 volt and 3.3 volt PCI / PCI-X expansion slots (Not for use in PCI Express slots)

Supported under Windows 10, 2000, 2003, 2008, XP 32 / 64, Vista 32 / 64, Windows 7, Windows 8.x, Linux 32 / 64 (Plug & Play)

Optional R/A IDC headers for internal port mounting (DTK & Everex / Intel pinouts)



Designed & Assembled in Canada

Model # LF814KB-2S

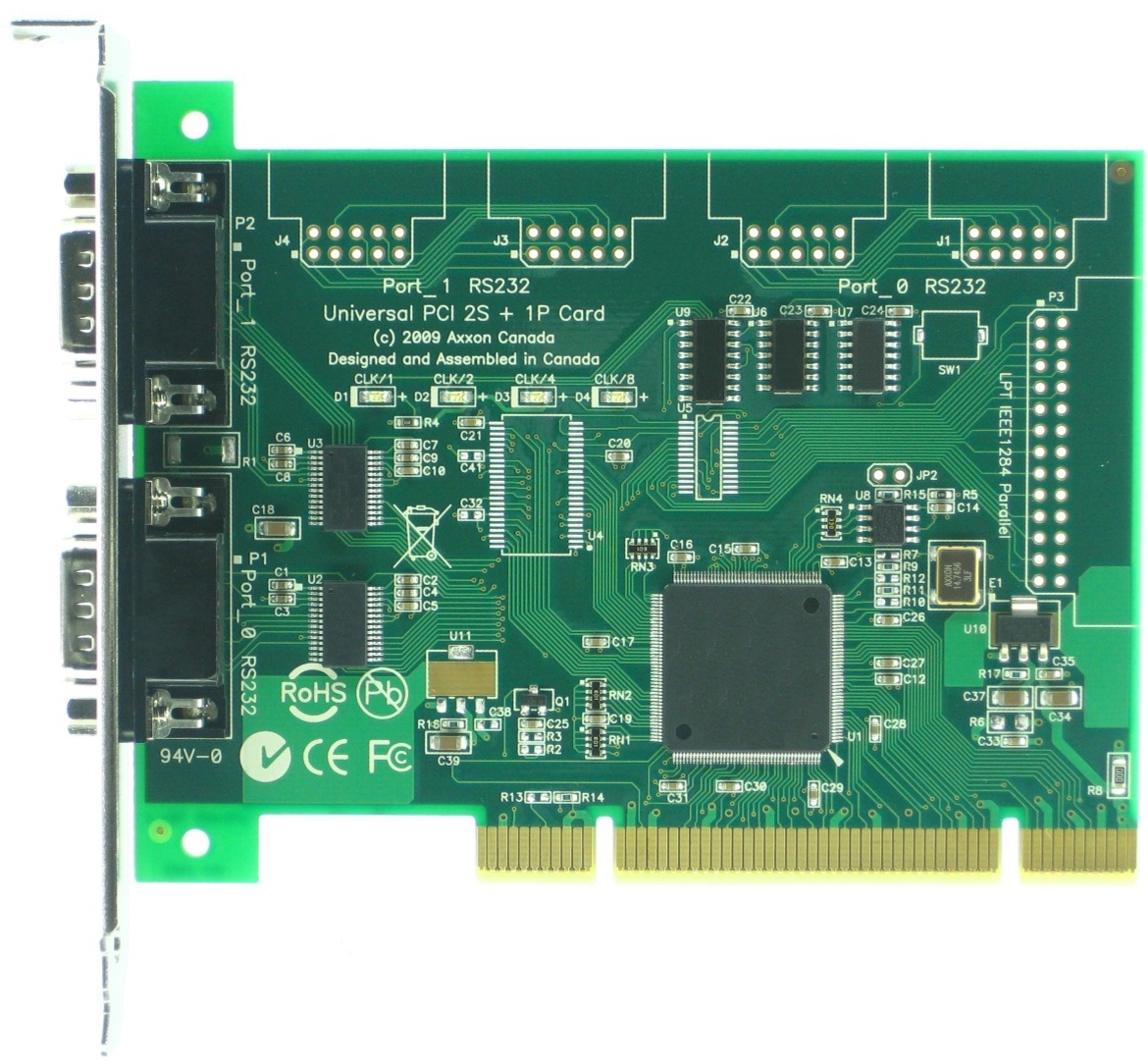

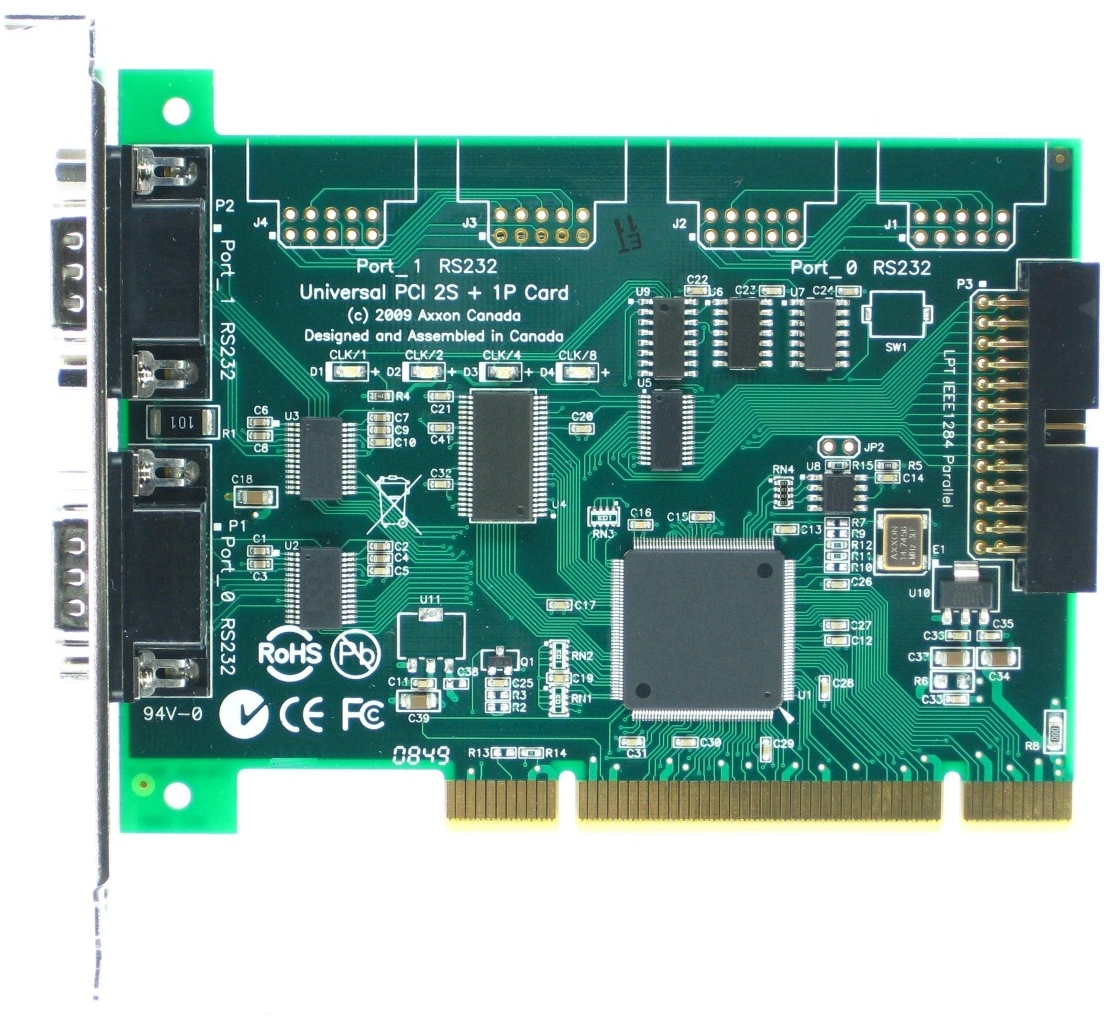

Click for large picture of the Universal PCI Dual Serial RS232 + Parallel Port adapter



Universal PCI Dual (2) RS232 Serial + 1 Parallel Host Adapter

Standard (Full) height mounting

Dual 16C950 UARTs

128 byte TX & RX FIFOs

Parallel port EPP 1.7 Compliant

15kv ESD Protection (RS232)

30kv ESD Protection (Parallel)

2 of DB9M Connectors

Compatible with 5 volt and 3.3 volt PCI / PCI-X expansion slots (Not for use in PCI Express slots)

Supported under Windows 10, 2000, 2003, 2008, XP 32 / 64, Vista 32 / 64, Windows 7, Windows 8.x, Linux 32 / 64 (Plug & Play)

Optional R/A IDC headers for internal port mounting (DTK & Everex / Intel pinouts)



Designed & Assembled in Canada

Model # LF814KB-2S1P
