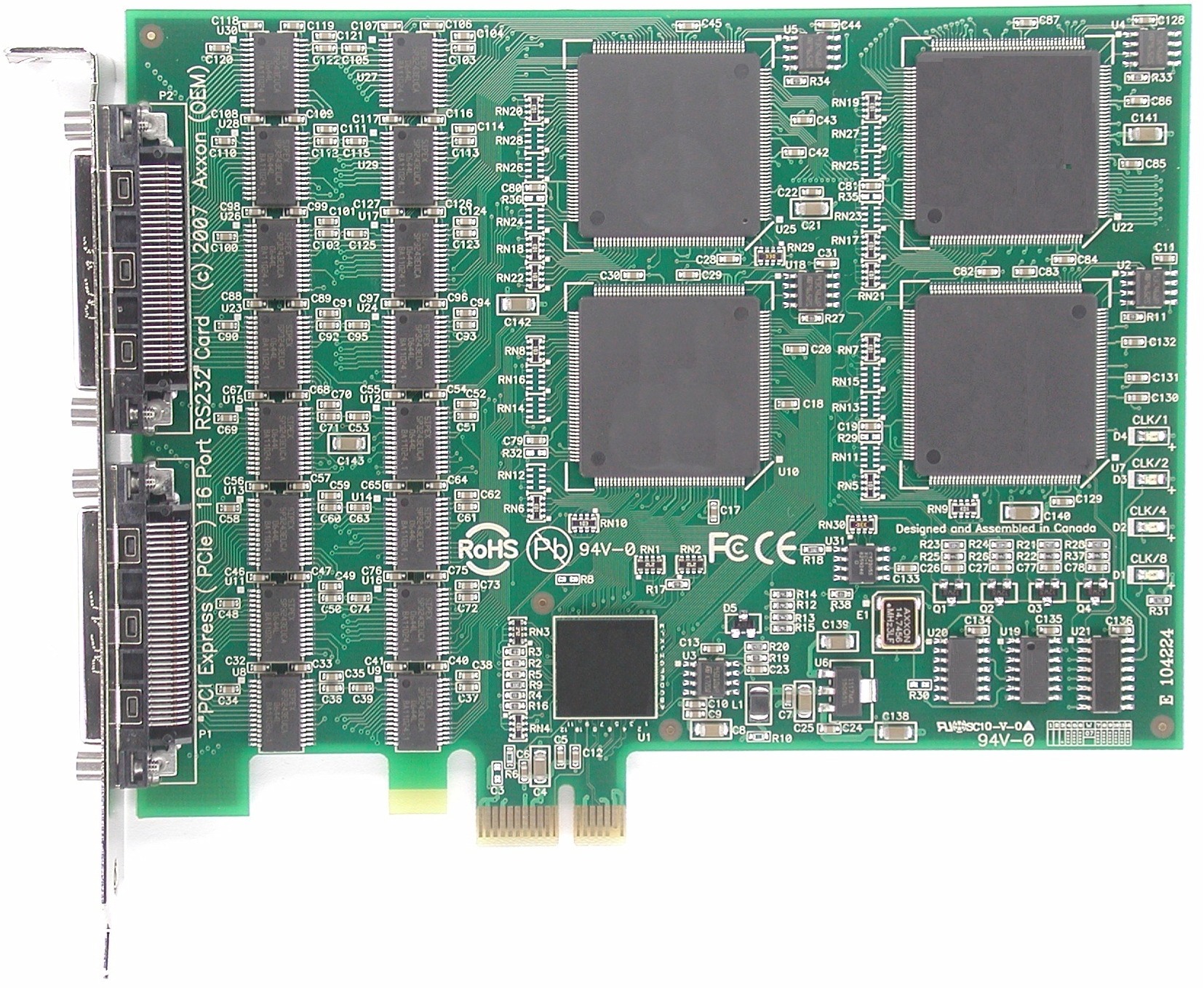

PCI Express (PCIe) 16 port RS232 Serial Port
I/O Card (Model #LF729KB)
|
|
|
 |
| Looking
for a PCI Express RS232 16s Multiport card ? |
Add
16s ports to your PCIe computer in seconds !
Compatible
with 1x, 4x, 8x, 16x lane PCI Express slots
on
either IBM or Apple platforms !
From
THE LEADER in PCI Express I/O
Card designs.
|
The industry's FIRST PCI Express
16s RS232 serial adapter to support
x1, x4,
x8, x16 Lane bus slots
16 Serial Port RS232 I/O Port
Card
for your x1, x4, x8, x16 lane
PCI Express expansion slot
Suitable for Standard height
mounting
Compatible with all PCI Express
motherboards on IBM / Apple
The industry's
FIRST add-on 16 serial (16950)
adapter for the PCI Express (PCIe) expansion
slots. This cutting edge design permits a
quick installation of 16 of RS232 serial to
any brand of computer system using the new
advanced PCIe expansion slots.This
single slot adapter is shipped complete with
complex 16 port cables (VHDCI68 to 8 of DB9M
x 2). Support is provided for Microsoft Windows
9x, ME, 2000, XP, XP64, Vista (32/64), NT4,
2003-32 bit, 2003-64 bit, QNX, OS/2 Warp 4.0
and Linux. Furthermore, Linux users will welcome
the ease of installation of this advanced
card by not having to recompile kernels, without
embedding add-on device drivers, without inserting
add-on modules. The Axxon LF729KB card is
Plug & Play supported by all current Linux
kernels. Count on Axxon to provide unrivalled
no-charge toll-free (US/Canada) technical
support by Design Engineers. Find out today
why we are the #1 choice of international
OEMs for PCI, PCI-X and now PCI Express designs.
We welcome requests from volume integrators
world-wide.
|
Order
Part #LF729KB
Part
# LF729KB is RoHS & Pb-free
compliant.
 |
|
Compatible
with all brands / models of computer systems
with PCI Express (PCIe) expansion slots |
|
|
Use
in 1x, 4x, 8x, 16x lane bus bus slots |
|
|
Standard Height Mounting footprint.
Complex cables with DB9M included. |
|
|
5
Year product replacement warranty. No charge
unlimited technical support from Design
Engineers. |
|
|
•
|
16
High Speed 16C950 Serial Port for PCIe / PCI Express expansion
slots |
| • |
Bus
design compatible with 1x, 4x, 8x, 16x lane expansion
slots |
| • |
Standard
Height mounting |
| • |
Complex
Cables Included (VHDC68M to 8 of DB9M x 2) |
|
•
|
16C950 UART ( 8x buffer than 16550) |
|
•
|
128 Byte Transmit / Receive Buffers |
|
•
|
Hardware
Auto-Flow Control |
| • |
TRUE
1 Megabaud RS232 Transceivers
|
| • |
Plug
& Play Compatible |
| • |
Software
Selectable NON-VOLATILE Clock
Divisors
|
| • |
RS232F
Electrical Interface |
|
•
|
15
kv ESD Surge Serial Port Protection |
| • |
Short-Circuit
/ Thermal and current protected RS232 transceivers |
|
•
|
Transceivers
contain onboard charge pump |
|
•
|
Device
Driver support for:
Win
95 / 98
Win
ME
Win
XP / XP Pro
Win
NT4 / NT4 Server
Win
2000
Win
2003 Server, 32/64 Bit
Vista
32 / 64
Embedded
XP / WinXP64
Plug
& Play in Linux (32/64 Bit)
*
No drivers, No add-on modules and No kernel rebuilds
required
QNX,
OS/2 (Warp 4.0)
MAC
OS 9, 10 (PnP installation)
|
| • |
Designed
and Assembled in Canada
|
|
•
|
2
x VHDCI68M to 8 of DB9 Male 3' Cables Included |
| |
|
|
|
