Model # LF566KB - MAP/950 PRO Dual 16950 True 1 Megabaud RS232 5 volt PCI Serial Card

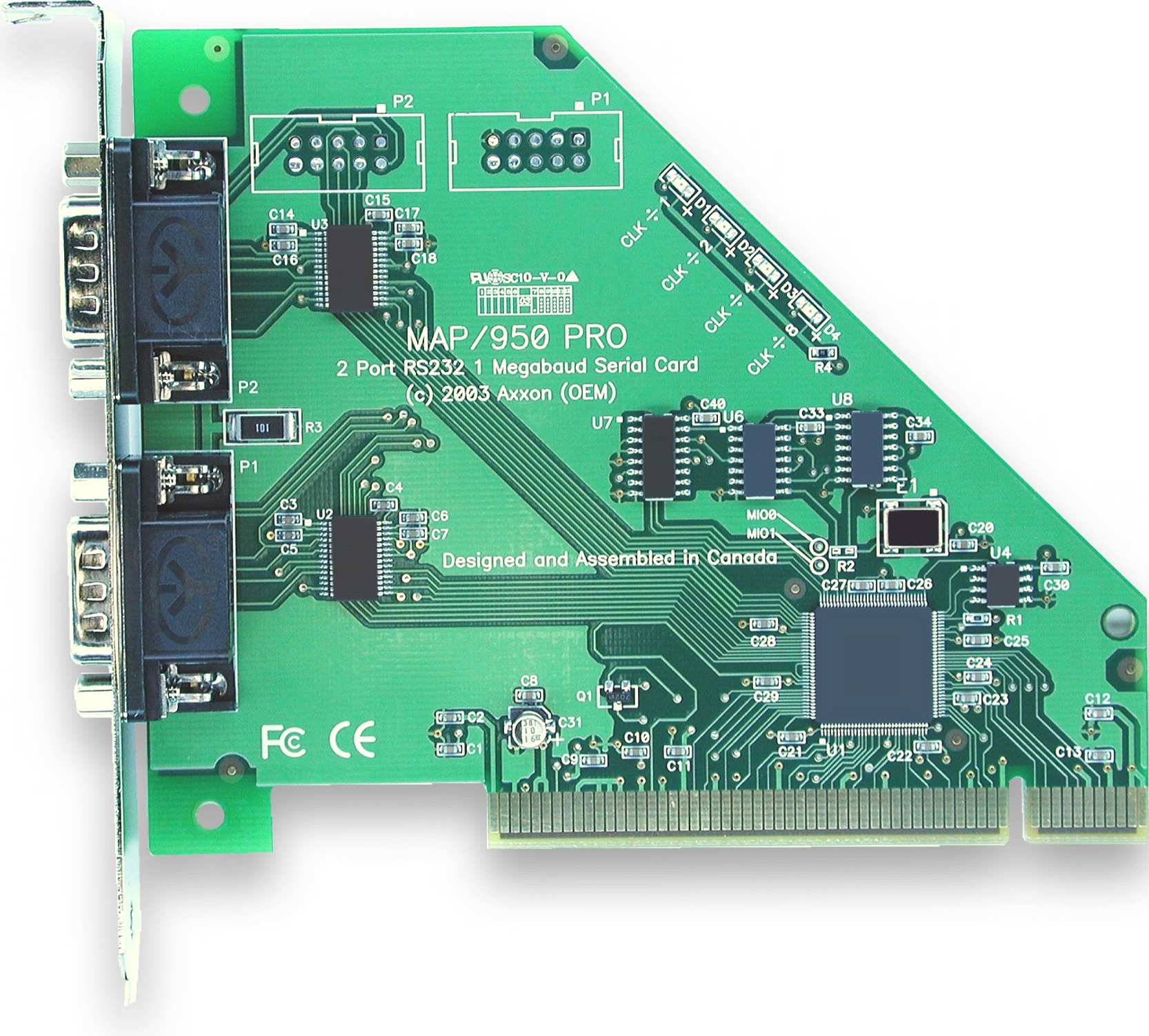

Click for Large Picture
Dual High Speed 16950 PCI Serial Ports
Superior to 16550 designs
Oxford 16C950 UART with 2 of DB9 Male connectors
128 Byte Transmit & Receive Buffers
Hardware Auto-Flow Control
TRUE 1 Megabaud RS232 Transceivers
Plug & Play Compatible

Software Selectable NON-VOLATILE Clock Divisors with LED Indicators

RS232F Electrical Interface
15 kv ESD + 15 Kv HBM Surge Protection
+5 Only PCI Design
Short-Circuit / Thermal and current protected transceivers
Transceivers contain onboard charge pump

Device Driver support for:

Win 95 / 98

Win ME

Win XP / XP Pro / XP64

Win NT4 / NT4 Server

Win 2000 / 2000 Server

Windows 2003 (32/64 Bit)

Linux (32/64 Bit), OS/2, QNX

Embedded XP

Linux support is provided without kernel rebuilds, without add-on device drivers, without add-on modules

PCI Bus 2.2 Compatible
Power Management 1.0 Compliant
Compatible with AMD Athlon / Pentium CPU Motherboards
Low Noise 4 Layer PCB
IRQ Sharing Capable (Both ports use SINGLE INTERRUPT)
FCC Class B and CE Approved
Designed and Assembled in Canada
Add PCI Serial Ports to your system in seconds !


Ultra fast speed: True 1 Megabaud

Advanced 16C950 UART with Software Selectable clock source

15kv ESD and short circuit protected transceivers

Plug and Play in Windows and Linux

Toll-Free technical support hotline (US/Canada)

30 Day 100% satisfaction money-back guarantee (Less shipping costs)

5 year product replacement warranty

OEM volume discounts available

Call us at 1-800-361-1913 for details!


Order Part #LF566KB (End of Life Status)

Replacement Order Part #LF566KB Rev H (Universal PCI Bus Interface)

Part # LF566KB Rev H is RoHS & Pb-free compliant


Click for Order Form

Toll-Free Technical Support Hotline (North America)
30 Day 100% Satisfaction Money-back Guarantee (less shipping)
Reseller, OEM & Volume discounts. Payment by Visa, American Express, Mastercard


Call us at 1-800-361-1913 for details!

Click here for the Product Installation Guide

Latest Windows Device Drivers (Contact Axxon)

MAP/950 Pro Clock Configuration Utility for Windows (Updated 02-01-03)

Linux Installation Documentation

Oxford Semiconductor OX16PCI952 UART Datasheet
