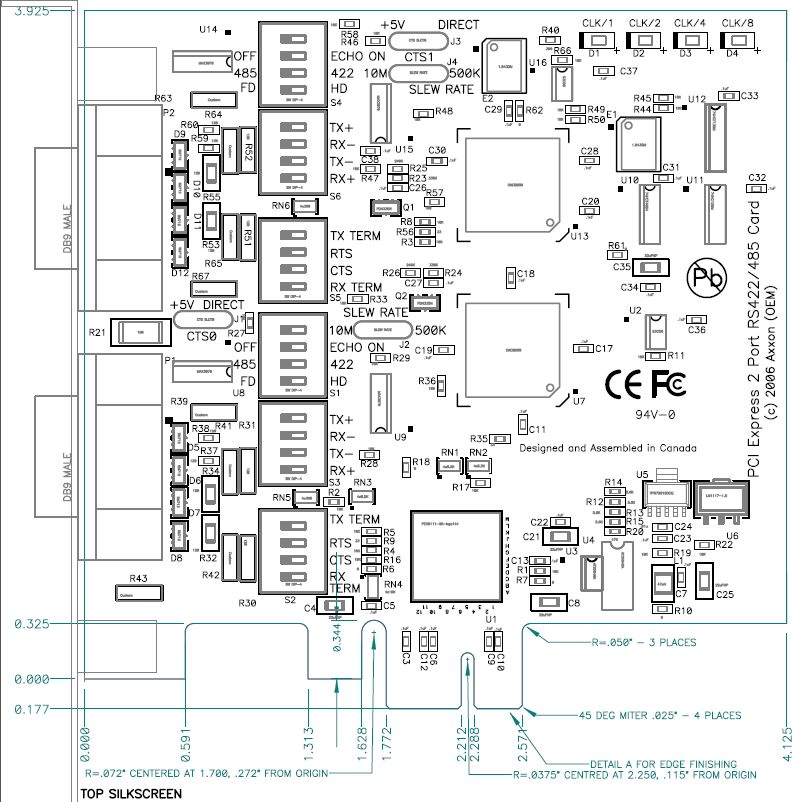

MAP/950
2 RS422 / RS485 Serial Port I/O Card for
PCI Express (PCIe) (Model #LF686KB)
|
| |
 |
| Looking
for a PCI Express RS422 / RS485 2S Multiport card
? |
Add
2S ports to your PCIe computer in seconds !
Compatible
with 1x, 4x, 8x, 16x lane PCI Express slots
|
PCI Express 2S Multiport adapter
to support
x1, x4,
x8, x16 PCIe Lane bus slots with RS422/RS485
interface
2 (Dual) Serial Port RS422 /
RS485 I/O Port Card
for your x1, x4, x8, x16 lane
PCI Express expansion slot
Compatible with all PCI Express
motherboards
Introducing
the industry's most advanced
add-on 2 serial (16950) adapter for PCI Express.
This cutting edge design permits a quick installation
of 2 of RS422/RS485 serial to any brand of
computer system. This
single slot, standard height adapter is provided
with support for Microsoft Windows 9x, ME,
2000, XP, XP64, NT4, 2003-32 bit, 2003-64
bit and Linux (32/64 bit). Furthermore, Linux
users will welcome the ease of installation
of this advanced card by not having to recompile
kernels, without embedding add-on device drivers,
without inserting add-on modules for RS422
interface. The Axxon LF686KB card is Plug
& Play supported by all current Linux
kernels. Count on Axxon to provide unrivalled
no-charge toll-free (US/Canada) technical
support by Design Engineers. Find out today
why we are the #1 choice of international
OEMs for PCI, PCI-X and now PCI Express designs.We
welcome requests from volume integrators world-wide.
|
Order
Part #LF686KB
Part
# LF686KB is RoHS & Pb-free
compliant
Click for Order Form
$10 (US) for UPS Ground (US/Canada)
$25 (US) for Priority Courier
Shipping (US/Canada) / International Customers
(Contact us)
 |
|
Compatible
with all brands / models of computer systems
with PCI Express (PCIe) expansion slots |
|
|
Use
in x1, x4, x8, x16 lane bus bus slots |
|
|
Standard Height Mounting bracket included |
|
|
5
Year product replacement warranty. No charge
unlimited technical support from Design
Engineers. |
|
|
•
|
Dual
(2) High Speed 16C950 Serial Port for PCIe / PCI Express
expansion slots |
| • |
Bus
design compatible with x1, x4, x8, x16 lane expansion
slots |
| • |
Standard
height mounting |
| • |
Slew
rate controlled transceivers |
| • |
Interface
lines with TX+,TX-, RX+, RX-, CTS+, CTS-, RTS+, RTS- |
|
•
|
16C950 UART ( 8x buffer than 16550) |
|
•
|
128 Byte Transmit / Receive Buffers |
|
•
|
Onboard
switch selectable 120 ohm termination network |
| • |
10 Megabaud RS422/485 Transceivers
|
| • |
Plug
& Play Compatible |
| • |
Software
Selectable NON-VOLATILE Clock
Divisors
|
| • |
RS422/485
Electrical Interface |
|
•
|
25
kv ESD Surge Serial Port Protection |
| • |
Short-Circuit
/ Thermal and current protected RS422 / RS485 transceivers |
|
•
|
Each
port is individually configurable to RS422 / RS485 |
|
•
|
Device
Driver support for:
Win
95 / 98
Win
ME
Win
XP / XP Pro
Win
NT / NT Server
Win
2000 / 2000 & 2003 Server / 2003 Server
Embedded
XP / WinXP64
Plug
& Play in Linux
|
| • |
Designed
and Assembled in Canada
|
|
•
|
Onboard
2 of DB9 Male connectors |
| |
|
|
|
|
|
|
|
|
|
