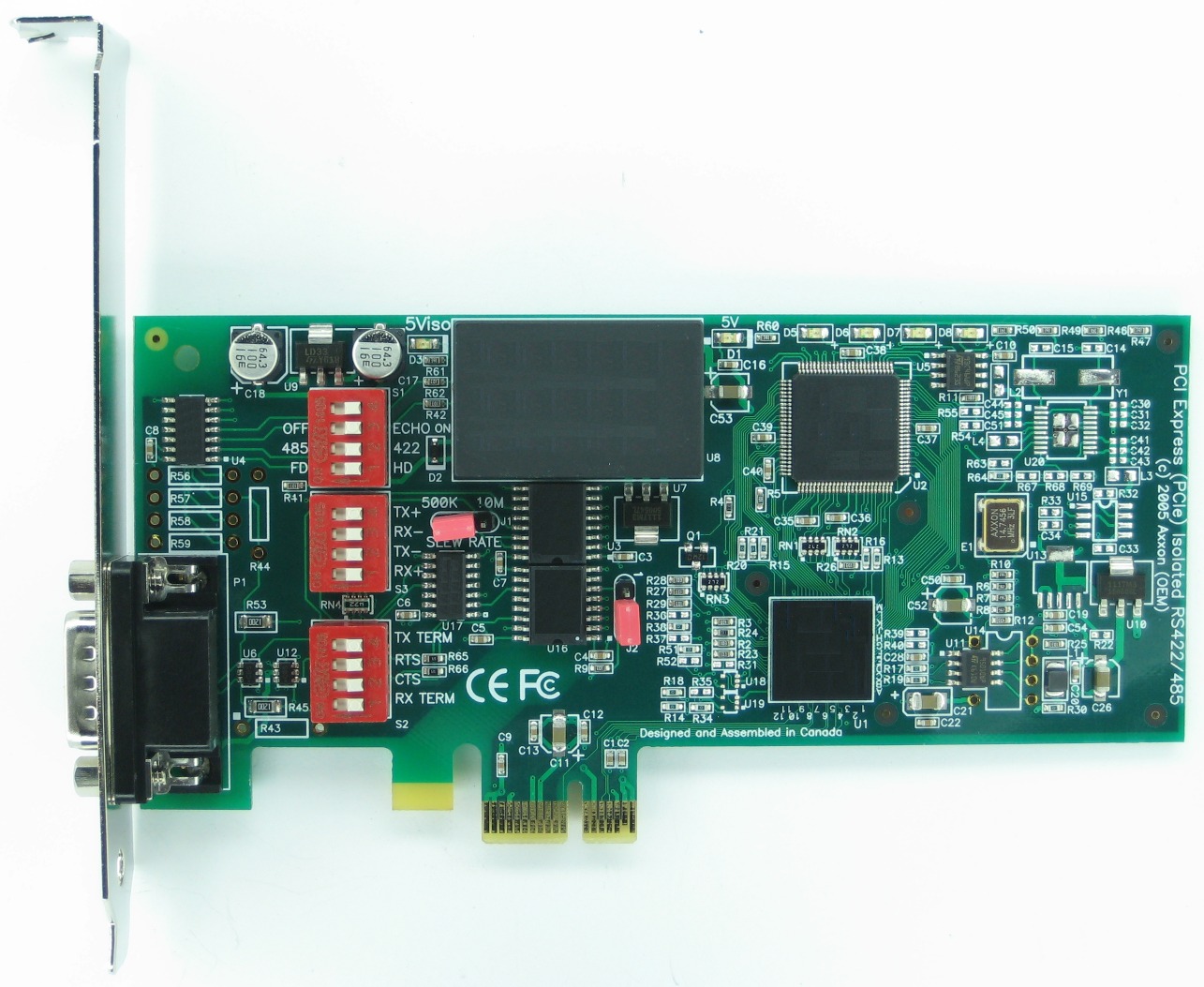

PCI Express (PCIe) Isolated RS422/RS485 Single 16950 I/O
Card ( Low / Standard Height) |
 |
|
|
Need
a PCI Express RS422/RS485 serial port ?
|
|
Quickly
add 1 Isolated RS422/RS485 serial port to your
PC !
|
 |
|
Compatible
with x1, x4, x8, x16 lane PCI Express
(PCIe) expansion slots |
|
|
State-of-the-art
advanced design permits high baud rates
with ESD protection and Isolation |
|
|
Low
and Standard Height Mounting brackets
included |
|
|
25kv
ESD Static Protection. Ideal for industrial
applications. |
|
|
Multiple
boards may be installed for additional
serial ports |
Single
Galvanically Isolated RS422/RS485 Serial Port
for
PCI Express (PCIe) Expansion Slots
2500
Volts Isolation
10
Mbaud support
Standard
Height or Low Profile Mounting
Order
Part # LF664KB
Click for Order
Form
|
Call
us at 1-800-361-1913 for more information
|
|
|
Toll-Free
Technical Support Hotline (North America)
|
|
| |
|
30
Day 100% Satisfaction Money-back Guarantee
(less shipping) |
|
| |
|
Reseller,
OEM & Volume discounts available |
|
|
•
Ultra fast speed: 10 Megabaud RS422/RS485 Interface
with 16C950 UART
•
New
Design
•
Toll-Free
technical support hotline (US/Canada)
•
30
Day 100% satisfaction money-back guarantee (Less shipping
costs)
•
Reseller / OEM / Volume discounts available
|
•
|
Single
High Speed RS422/RS485 PCI compatible Serial Port |
| • |
Low
Profile MD1 Size (121.79 mm)
|
| • |
Bracket
Height 79.2 mm (3.118") |
| • |
Standard
& Low Height Brackets included |
| • |
Use
in any free PCIe / PCI Express expansion slot |
|
•
|
16C950 UART |
|
•
|
128 Byte Transmit / Receive Buffers |
| • |
Slew
Rate controlled 10 Mbaud RS422/RS485 Transceiver
|
| • |
Maximum
Baud Rate
10
Megabaud (requires clock change)
|
| • |
Support
upto 115.2k baud without clock change |
| • |
Plug
& Play Compatible |
| • |
RS422/RS485
Electrical Interface |
| • |
Full
/ Half Duplex Support |
| • |
Onboard
Power status LED indicators |
|
•
|
25
kv ESD + 25 Kv HBM Surge Protection |
| • |
Thermal
and Current protected transceivers |
|
•
|
2500
volt Isolation with onboard DC-DC isolated convertor |
|
•
|
Device
Driver support for:
Windows
XP 32/64
Windows
2000, 2003, 2008
Windows
Vista 32/64
Windows
7
Linux
32/64, QNX
|
| |
|
|
|
|
|
|
|
| |
|
|
|
