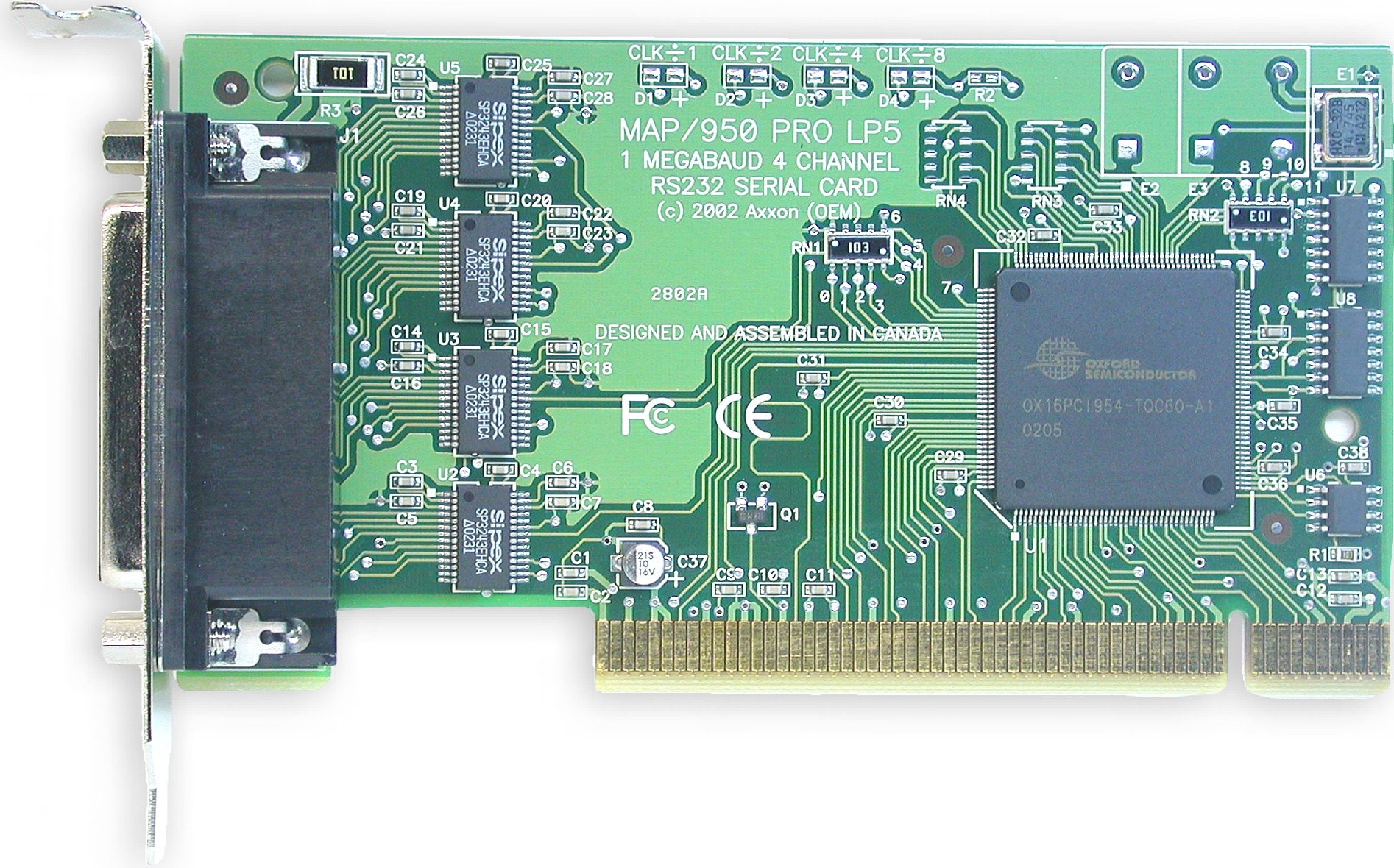

MAP/950 PRO PCI 4 Port 16C950 RS232 I/O Card ( Low / Standard Height 5 Volt MD1 ) (Model #LF598KB)


Do you have a Low / Standard Height PC and need extra RS232 serial ports ?
Add 4 high speed serial ports to your PC in seconds !
Click for Large Picture

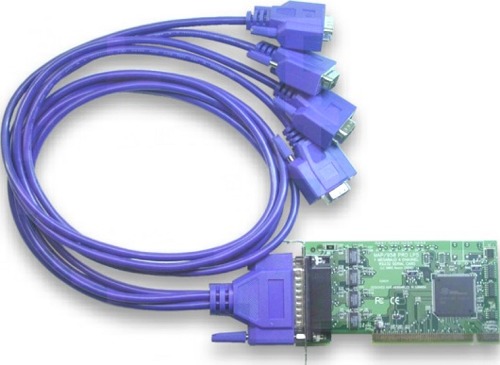

High Density 44 Male to 4 of DB9 Male 3' Cable Included

Ordering Information :  LF598KB

Spare Cable :  Quadplex HD44M to DB9M Cable

Need to add 2 Serial Ports to your Standard Height PCI Slot ?
Need to add 2 Serial Ports to your Low Profile Height PCI Slot ?
Need to add 4 Serial Ports to your Standard Height PCI Slot ?
Need to add 8 Serial Ports to your Standard Height PCI Slot ?



Ultra fast speed: 1 Megabaud

New Design

Toll-Free technical support hotline (US/Canada)

30 Day 100% satisfaction money-back guarantee (Less shipping costs)

Reseller / OEM / Volume discounts available



Quad (4) High Speed 16950 PCI Serial Ports

Low Profile MD1 Size (121.79 mm)

Bracket Height 79.2 mm (3.118")
Standard & Low Height Brackets included
Quadplex Cable Included (HD44M to 4 of DB9M)
16C950 UART
128 Byte Transmit / Receive Buffers
Hardware Auto-Flow Control

TRUE 1 Megabaud RS232 Transceivers



Maximum Baud Rate

1 Megabaud

Plug & Play Compatible

Software Selectable NON-VOLATILE Clock Divisors with LED indicators

RS232F Electrical Interface
15 kv ESD + 15 Kv HBM Surge Protection
Short-Circuit / Thermal and current protected transceivers
+5 Volt Only PCI Design
Transceivers contain onboard charge pump

Device Driver support for:

Win 95 / 98

Win ME

Win XP / XP Pro

Win NT / NT Server

Win 2000 / 2000 Server

Win 2003 Server

Embedded XP

Plug & Play in Linux 2.4+ kernels

QNX

PCI Bus 2.2 Compatible

(For use in 5 volt PCI Slots)

Power Management 1.0 Compliant
Compatible with AMD Althlon / Pentium CPU Motherboards
Low Noise 4 Layer PCB
IRQ Sharing Capable (All 4 ports use SINGLE Interrupt)
FCC Class B and CE Approved
Designed and Assembled in Canada

Order Part #LF598KB

Click for Order Form



Call us at 1-800-361-1913 to order yours now!

Product Installation Guide

Windows Device V4.09 Drivers for MAP/950 Pro 4 Port LP5

Linux Installation Documentation

Linux Device Drivers for MAP/950 Pro 4 Port LP5

Oxford Semiconductor OX16PCI954 UART Datasheet
