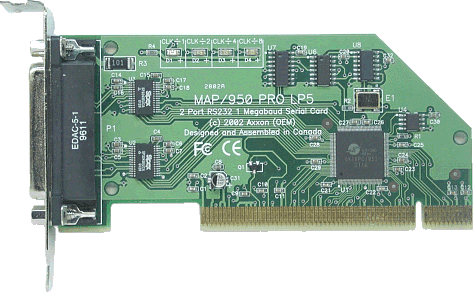

MAP/950 PRO PCI Dual 16950 RS232 I/O Card ( Low / Standard Height 5 Volt MD1 ) (Model #LF509KB)
Do you have a Low / Standard Height PC and need extra RS232 serial ports ?
Add 2 serial ports to your PC in seconds !
Click to see Large Picture

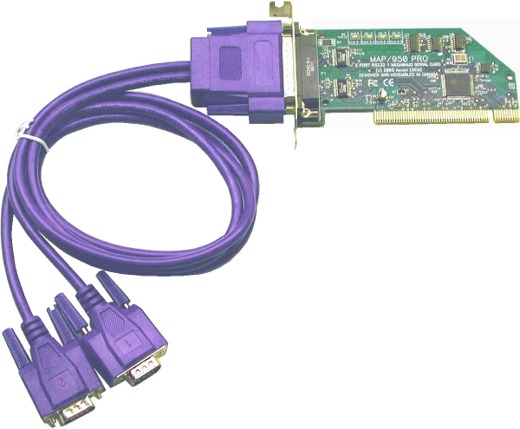

DB25 Male to 2 of DB9 Male 3' Cable Included

Ordering Information :  MAP950_2PLP5

Spare Cable :  Dualport DB9M Cable

Need to add 4 Serial Ports to your Low Profile Height PCI Slot ?

Ultra fast speed: 460k Baud (1 Megabaud optional)

New Design

Toll-Free technical support hotline (US/Canada)

30 Day 100% satisfaction money-back guarantee (Less shipping costs)

5 year product replacement warranty

OEM volume discounts available

Dual High Speed 16950 PCI Serial Ports

Low Profile MD1 Size (121.79 mm)

Bracket Height 79.2 mm (3.118")
Standard and Low Height Brackets included
Dualport Cable Included (DB25M to 2 of DB9M)
16C950 UART
128 Byte Transmit / Receive Buffers
Hardware Auto-Flow Control

TRUE 500k Baud RS232 Transceivers

(1 Megabaud optional)

Maximum Baud Rate

460K Baud

(1 Megabaud optional)

Plug & Play Compatible

Software Selectable NON-VOLATILE Clock Divisors with LED Indicators

RS232F Electrical Interface
15 kv ESD + 15 Kv HBM Surge Protection
Thermal and Current protected transceivers
+5 Volt Only PCI Design
Transceivers contain onboard charge pump

Device Driver support for:

Win 95 / 98

Win ME

Win XP / XP Pro / XP64

Win NT / NT Server

Win 2000 / 2000 / 2003 / 2008 Server

Vista 32/64

Plug & Play Linux Support

PCI Bus 2.2 Compatible

(For use in 5 volt PCI Slots)

Power Management 1.0 Compliant
Compatible with AMD Althlon / Pentium CPU Motherboards
Low Noise 4 Layer PCB
IRQ Sharing Capable (Both ports use SINGLE Interrupt)
FCC Class B and CE Approved
Designed and Assembled in Canada


Order Part #LF509KB

Part # LF509KB is the RoHS & Pb-free compliant version of model IC0509KB.

Click for Order Form

Call us at 1-800-361-1913 to order yours now!


Product Installation Guide

Linux Installation Documentation

Oxford Semiconductor OX16PCI952 UART Datasheet
