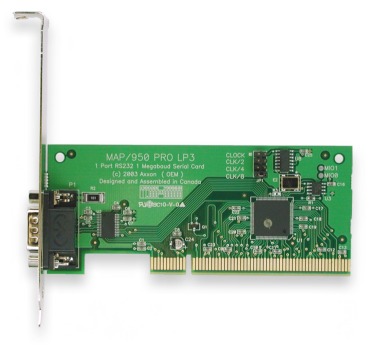

| MAP/950
PRO PCI Single 16950 RS232 I/O Card ( Low /
Standard Height 3 Volt MD1 ) |
 |
|
| Do
you have a Low / Standard Height PC and need an
extra RS232 serial port for the 32/64 Bit 3.3
volt PCI expansion slot? |
|
Add
1 serial port to your PC in seconds !
|
Single
High Speed RS232 Serial Port with 16C950 UART
for
3.3
volt 32 / 64 Bit PCI / PCI-X Expansion Slots
Standard
Height or Low Profile Mounting
Order
Part #IC0560KB
|
Call
us at 1-800-361-1913 for more information
 |
|
Compatible
with 3.3 volt PCI / PCI-X expansion slots
- Dell, Compaq, IBM, Intel chassis |
|
|
32
/ 64 Bit PCI / PCI-X bus slots (3.3 volts
only) |
|
|
Low
and Standard Height Mounting brackets
included |
|
|
15kv
ESD Static Protection |
|
|
Multiple
boards may be installed for additional
serial ports |
|
|
|
Toll-Free
Technical Support Hotline (North America)
|
|
| |
|
30
Day 100% Satisfaction Money-back Guarantee
(less shipping) |
|
| |
|
Reseller,
OEM & Volume discounts available |
|
|
| |
•
Ultra fast speed: 1 Megabaud RS232 Interface with
16C950 UART
•
New
Design
•
Toll-Free
technical support hotline (US/Canada)
•
30
Day 100% satisfaction money-back guarantee (Less shipping
costs)
•
Reseller / OEM / Volume discounts available
|
•
|
Single
High Speed RS232 PCI Serial Port |
| • |
Low
Profile MD1 Size (121.79 mm)
|
| • |
Bracket
Height 79.2 mm (3.118") |
| • |
Standard
Height Bracket is optional |
| • |
Use
in 32 bit or 64 bit 3 volt PCI / PCI-X expansion slots |
|
•
|
16C950 UART |
|
•
|
128 Byte Transmit / Receive Buffers |
|
•
|
Hardware
Auto-Flow Control |
| • |
TRUE
1 Megabaud RS232 Transceivers
|
| • |
Maximum
Baud Rate
1
Megabaud
|
| • |
Plug
& Play Compatible |
| • |
RS232F
Electrical Interface |
|
•
|
15
kv ESD + 15 Kv HBM Surge Protection |
| • |
Thermal
and Current protected transceivers |
|
•
|
+3.3
Volt Only PCI Design |
|
•
|
Transceivers
contain onboard charge pump |
| • |
Device
Driver support for: |
| |
Win
95 / 98 |
| |
Win
ME |
| |
Win
XP / XP Pro |
| |
Win
NT / NT Server |
| |
Win
2000 / 2000 Server |
| |
Linux |
| • |
PCI
Bus 2.2 Compatible
(For use in 3.3 volt PCI Slots)
|
|
•
|
Power
Management 1.0 Compliant |
|
•
|
Compatible
with AMD Althlon / Pentium CPU Motherboards |
| • |
Low
Noise 4 Layer PCB |
| • |
IRQ
Sharing Capable (Both ports use SINGLE Interrupt) |
| • |
FCC
Class B and CE Approved |
| • |
Designed
and Assembled in Canada |
